Wissenschaftliche Experimente, gerade diejenigen mit hochenergetischer Strahlung an Beamlines, haben ihre ganz eigenen, individuellen Anforderungen. Allen gemeinsam ist jedoch der Bedarf an hochpräziser Instrumentierung. Bei PI erarbeiten erfahrene Ingenieure gemeinsam mit Wissenschaftlern die beste, womöglich einzigartige Lösung für wiederholbare Ergebnisse. Die Beamline Instrumentation bietet optimale Motion Control und Positionierlösungen für Aufgaben in der Strahlaufbereitung, der Optik, Probenmanipulation und Detektorpositionierung, ob einzelne Komponenten gefragt sind oder die komplette Ausrüstung einer Experimentierhütte. Beamline Instrumentation ist der verlässliche Partner vom Design über den Aufbau, die Qualifizierung bis hin zur Inbetriebnahme vor Ort.

Sample Positioning in Cryogenic Environment

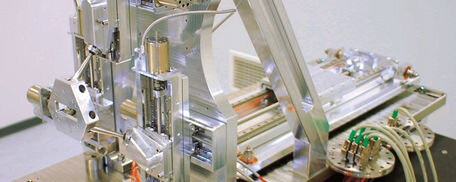

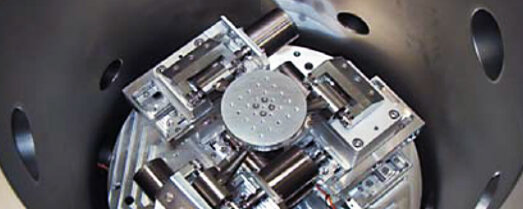

Cryo Sample Positioning with SpaceFAB

Sample positioning in high‐vacuum cryogenic environment needs instruments which operate at temperatures of ‐50 °C in a high‐vacuum chamber.

Full Instrumentation for X-Ray Nanotomography

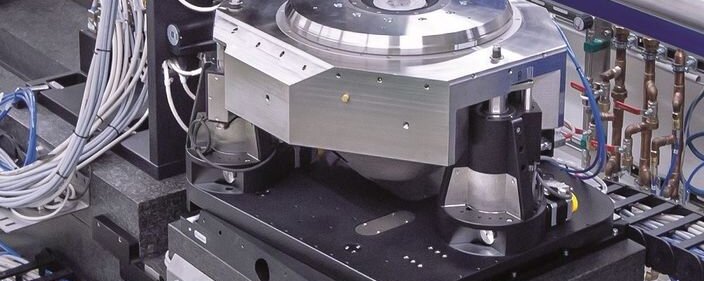

Nanotomography sample positioning

At the X-ray light source PETRA III at the DESY research center in Hamburg operates the Imaging Beamline P05.

Positioning for Laminography

Positioning for Laminography

High-precision spatial positioning for synchrotron laminography allows high-resolution 3D imaging on large flat, extended objects.

Compact Linear Translation Stage Positions X-Ray Detectors

Compact Linear Translation Stage Positions X-Ray Detectors

For positioning the x-ray detectors, PI developed a compact linear translation stage that features a guiding and two separate moving plates.

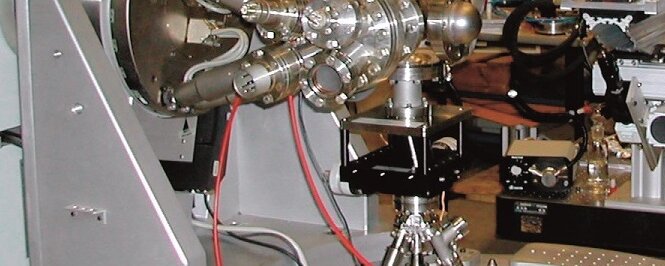

Positioning the Vacuum Chamber for X-ray Diffraction Experiments

PI-Vacuum-Chamber-PI-Hexapod

Positioning the vacuum chamber for x-ray diffraction experiments.

Sample Manipulators in High-Vacuum

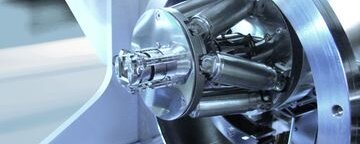

SURFACE Sample Manipulator

Investigation of the structural properties of thin films under high-vacuum conditions.

Long-Term Positioning

PI-4-Axis-Positioning

For the task of long-term positioning a high accuracy of motion is demanded as well as the stability over long terms in a vacuum environment.

Monochromator for an X-Ray Spectrometer

PI Design Double Monochromator ID18

The PI Beamline Instrumentation division’s aim is to develop application oriented solutions, e.g., this monochromator for an X-ray spectrometer.

X-Ray Optics Hutch Instrumentation

At DESY in Hamburg, the P05 Imaging Beamline is operated by the HZG.

Slit Control in the Photon Delivery System

SSRF-Photon-Delivery-System

XZ positioning systems control x-xay slits at the the Shanghai Synchrotron Radiation Facility, Shanghai (SSRF).

Beam Preparation in a Gamma Ray Environment

system for beam preparation

For alignment systems for optical components in such a hostile environment PI designed, built and qualified a parallel kinematic machine with six degrees of freedom (DOF) within 30 weeks only.

X-Ray Holography & Tomography Endstation

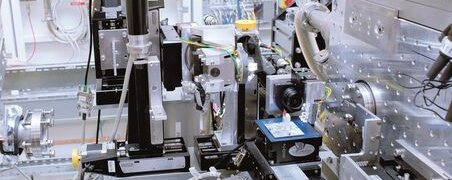

X-Ray Holography and Tomography Endstation

Sample positioning setup inside tomography and holography endstations.

X-Ray-Diffractometer

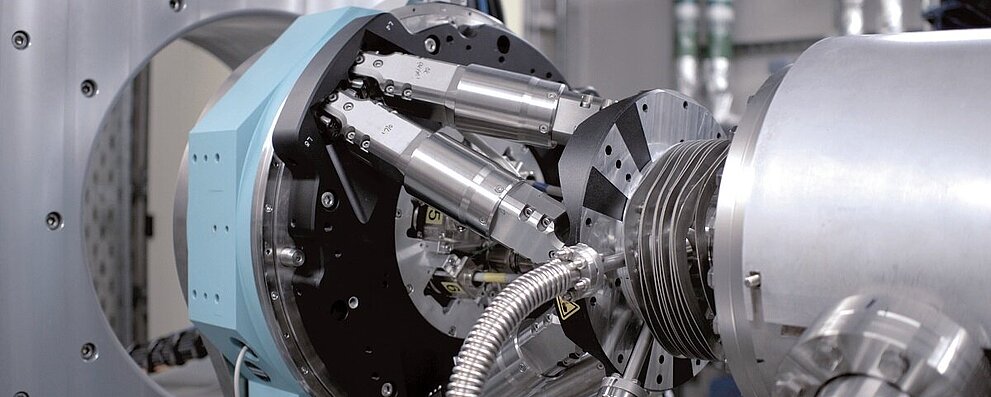

Diamond-Light-Source-Beamline-I07

At Diamond Light Source, UK, beamline I07 is a high-resolution X-ray diffraction beamline dedicated to investigate the structure of surfaces and interfaces.

X-Ray Tomography Stage for Cryogenic Samples

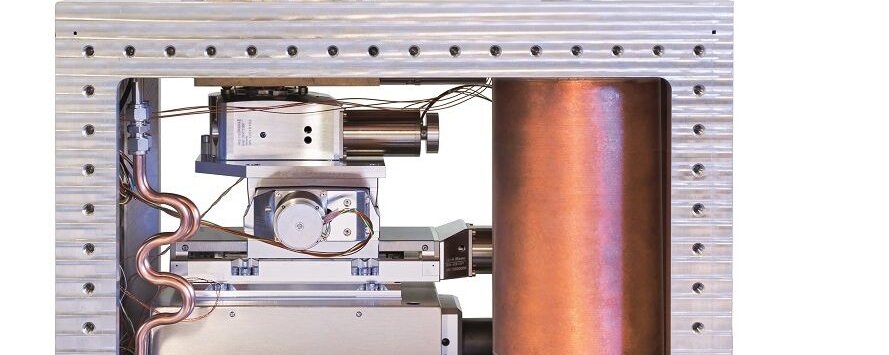

PI-Tomography-Stage

The setup of the x-ray tomography stage, located at the P06 beamline of PETRA III at DESY (Germany) allows to investigate samples that require both cooling and vacuum environment.

High-Load Parallel Kinematics for Materials Research

Hochlast-Parallelkinematik für die Materialforschung

The high-energy X-rays at beamlines provide numerous possibilities for materials research, such as checking welding seams of workpieces.

X-Ray Scanning Microscope with Unrivalled Resolution

DESY-XYZ-Stage-Granite

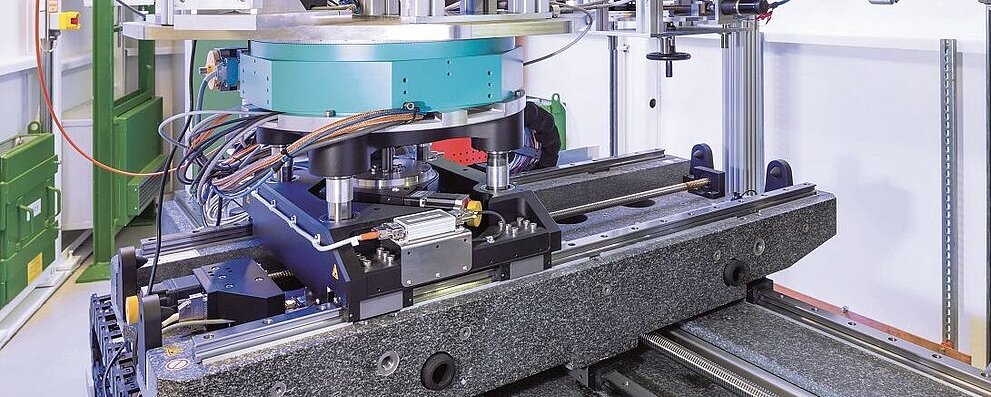

The Hard X-ray Micro/Nano-Probe beamline P06 at PETRA III provides advanced visualisation with micro/nanoscopic spatial resolution using different X-ray techniques.

PICMA® Multilayer Piezo Actuators Improve Efficiency in the Particle Accelerator XFEL

PICMA® Multilayer Piezo Actuators Improve Efficiency in the Particle Accelerator XFEL

Dynamic compensation of Lorentz forces at the XFEL accelerator structures: The particle accelerator XFEL at the DESY (German Electron Synchrotron) uses acceleration technology based on super-conducting acceleration structures, so-called resonators or cavities.
